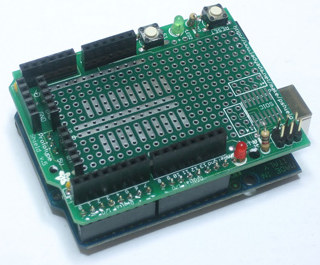

Adafruit Industries Proto Shield

Shield URL: Proto Shield
Tags:
Maker: Adafruit Industries

This shield is designed to make prototyping on your Arduino easy by giving you space to add your own parts without requiring a custom shield PCB.

• Reset button up top.

• ICSP header.

• Lots of GND and +5V rails.

• DIP prototyping area makes it easy to add more chips.

• SOIC prototyping area above USB jack for up to 14-pin SOIC chip, narrow medium or wide package.

• Use 'mini' or 'medium' breadboard.

• Two 3mm LEDs with matching resistors.

• Extra 6mm button.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 2.5
Source: Unknown

Note:
No header pins are specifically reserved by the shield: all connections are available for use in the user's projects.
