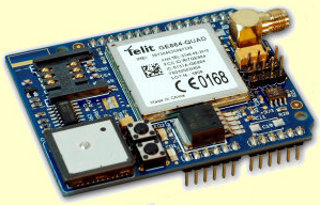

antrax Datentechnik GSM GPRS GPS Shield


Photo credits: unknown

Shield URL: GSM GPRS GPS Shield
Tags: gsm, gprs, gps, communications
Maker: antrax Datentechnik

Allows Arduino to use GSM (mobile communication) and GPS functionality (navigation), for example
to:

  • Identify the current position via GPS and send it via SMS.
  • send an alert.
  • Track a travel route and send it via GPRS.


The GSM-GPRS-GPS shield is plugged as the top shield on top of the Arduino board, ensuring that the antenna of the integrated GPS receiver has a clear view. Any standard screw mount GSM antenna types (stubby, magnetic mount, adhesive mount) with SMA connectors can be used.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D0, D1: Serial comms for GSM & GPRS.
D2: CRING
D3: CTS
D4: DTR
D5: RTS
D6: DCD
D7: GSM_EN
D9: LED1 (GPS-LED)
D10, D11, D12, D13: SPI comms for GPS.
A0 as D14: P1 (GSM-Button)
A1 as D15: P2 (GPS-Button)
