Batsocks 6 Button Shield


Photo credits: unknown

Shield URL: 6 Button Shield
Tags: button, input
Maker: Batsocks

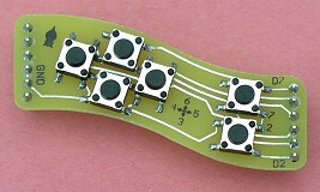

A small 6 button shield for game playing, suitable for left and right handed people.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Uses D2 to D7 and leaves TX and RX free.
Buttons read low when pressed.
