Chesters Garage Power LED Shield

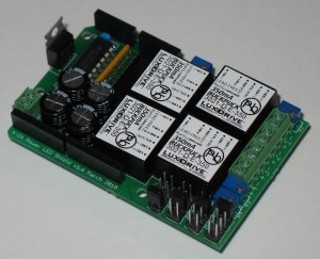

Photo: Mark Chester

Shield URL: Power LED Shield
Tags: led, output
Maker: Chesters Garage

This shield drives and controls power LEDs (LEDs rated 1W and up). In addition to PWM dimming control, the output current of each channel is adjustable with a trim-potentiometer for driving LEDs at less than
1000mA.

The PWM pin for each channel is jumper-selectable and any combination of pins can be assigned. For safety and proper operation, the drivers are electrically isolated from the Arduino pins by opto-couplers on each channel. The shield also includes a 5V regulator that can power the Arduino.

  • 4 individually addressable channels.
  • Each channel adjustable ~50mA to 1000 mA.
  • 1 to 6 LEDs per channel (more if you run strings in parallel)
  • Any combination of LED colors.
  • Full opto-isolation to protect the Arduino.
  • 5V regulator to power the Arduino from the shield.
  • Drives 85 Watts of LEDs from one shield (6 LEDs x 3.6V x 1000 mA x 4 channels)
  • Stackable (estimated up to 8 shields can be stacked)
  • Minimum input voltage: 6 VDC.
  • Maximum input voltage: 32 VDC.

Open Source: Unknown
License: Unknown
Source: http://www.chesterfamily.org/pictures...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
