Ben Combee RGB LED Shield

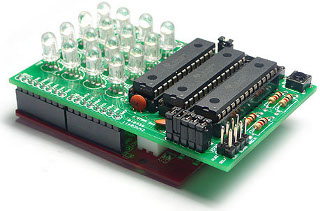

Photo: Seeed Studio

Shield URL: RGB LED Shield
Tags: led, display, output
Maker: Ben Combee

Uses three TI TLC5940 PWM LED driver ships to drive a 4x4 array of RGB LEDs. Each color is controlled by a different chip so you can adjust the reference resistors for the appropriate current. This also includes mounting positions for for three general-purpose buttons that are connected to ground, and a reset button. The TLC5940 chips are not directly connected to any Arduino pins, but a header is provided for you to make a manual connection depending on the needs of your sketch.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0 US
Source: combee.net/rgbshield/RGB_LED_Shield_1...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Pin selection is determined by the user: the buttons and FTDI chip signals are connected through jumpered headers to allow reassignment so the shield can be used on the Mega or stacked with other shields that need those pins.
