Control Connection DOGS102 LCD Shield

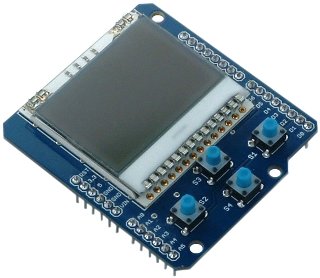

Photo credits: unknown

Shield URL: DOGS102 LCD Shield
Tags: lcd, display, output
Maker: Control Connection

LCD shield based on DOGS102W display from Electronic Assembly:

  • 102x64 monocrome resolution with Amber backlight.
  • 3.3V SPI interface with CD4050 buffer.
  • SMD componens mounted on the back.
  • Optional 5V to 3.3V regulator and PWM backlight control.
  • 4 buttons for easy menu navigation.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D2-D5 used by 4 pushbuttons.
Optional PWM brightness control via D6.
