Creatron Inc Idea Shield

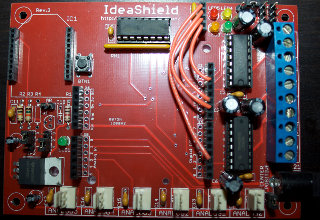

Photo: Luxxnatura

Shield URL: Idea Shield
Tags: xbee, motor, servo, breadboard
Maker: Creatron Inc

Note: I have almost no data on this shield, and I can't find a web page about it so I'm just linking straight to the maker for now. The name is also in dispute: the PCB clearly states "IdeaShield", but the packaging says "Ideal shield". I'm taking the PCB as the authoritative reference.

  • Supports up to 4 bi-directional DC motors or a stepper motor.
  • Motor voltage 4.5-36V.
  • Uses L293Dx2 H-bridge.
  • Connections for 2 x 5V servos.
  • XBee connection.
  • 6 x analog input breakouts.
  • Mini breadboard space.

Open Source: Unknown
License: Unknown
Source: Unknown
