CuteDigi Li-Ion Battery Shield

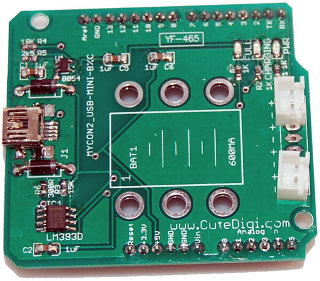

Photo: CuteDigi

Shield URL: Li-Ion Battery Shield
Tags: battery, charge, power
Maker: CuteDigi

This shield is used to provide a rechargable battery pack for the Arduino.

The mini-USB port is used to charge a Li-Ion or Lo-Ion poly battery. There are LEDs showing the charge status.

6 big mounting holes can help you easily fix the battery pack.

For a 600mAH battery, it takes about half hour to charge.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Uses no I/O pins. Connections are only to +5V and GND.
