CuteDigi MIDI Shield

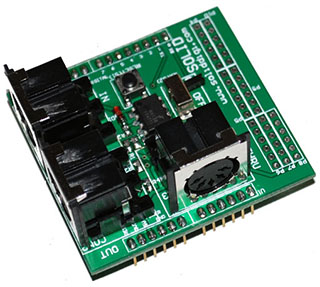

Photo: CuteDigi

Shield URL: MIDI Shield
Tags: midi
Maker: CuteDigi

Provides MIDI-IN, MIDI-OUT, and MIDI-THRU connections. MIDI signals are connected to Arduino TX/RX, but can be isolated using a switch to allow a sketch to be uploaded without removing the shield. Includes breakouts for all Arduino I/O.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Schematic and PCB layout provided as PDF. No license stated. No source files available.

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
