CuteDigi RS232 Shield

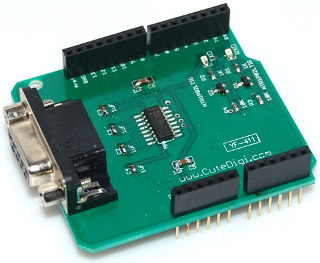

Photo: CuteDigi

Shield URL: RS232 Shield
Tags: serial, communications
Maker: CuteDigi

Adds an RS232 serial port to your Arduino.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Also uses 5V and GND.
