DFRobot LCD Shield

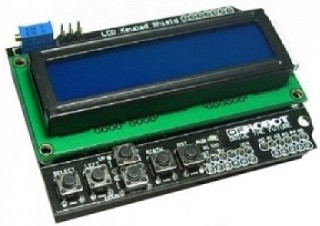

Photo: DFRobot

Shield URL: LCD Shield
Tags:
Maker: DFRobot

Includes a 16x2 HD44780 compatible LCD with white character & blue backlight, plus input buttons.

Uses the Arduino LCD4Bit library.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
