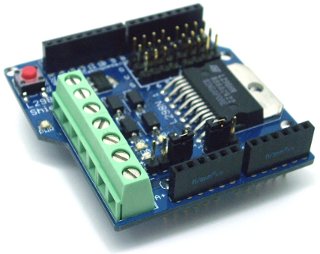

Emartee L298N Motor Drive Shield


Photo credits: unknown

Shield URL: L298N Motor Drive Shield
Tags: motor, h-bridge
Maker: Emartee

Drive 2 motors with using the L298N H-bridge chip.

Rating:
Max 2A
Max 46V

Can provide power to motors from the Arduino or from an external power source.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Motor A direction: D13 & D12
Motor A speed: D10
Motor B direction: D11 & D8
Motor B speed: D9
