Freetronics ProtoShield Basic

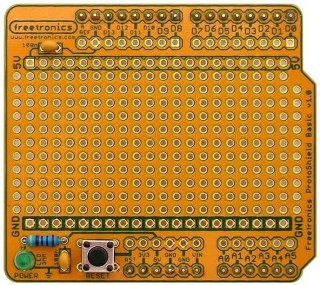

Photo: Jonathan Oxer
Shield URL: ProtoShield Basic
Very simple prototyping shield designed to provide maximum general-purpose prototyping area. Also includes mounting locations for a reset button, a power LED, and two smoothing capacitors.
Supplied as a bare PCB without headers or other parts.
Open Source: Yes, OSHW-compliant
License: TAPR Open Hardware License
No pins specifically used on the shield. All headers except the ICSP header are exposed as breakout pads on the PCB.
