Freetronics RFID Lock Shield

Shield URL: RFID Lock Shield
Tags: rfid, lock, strike, control, output
Maker: Freetronics

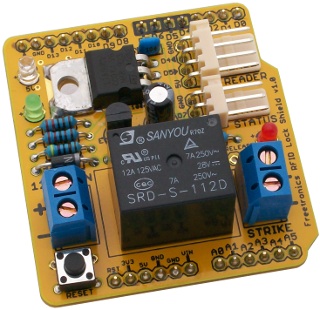

This shield allows your Arduino to control a door lock using an electric strike plate and one of a number of commonly-available RFID modules, and is based on the circuit described in the "RFID Access Control System" project in the book "Practical Arduino".

Supported modules include:

• ID12

• ID20

• RDM630

• RDM880

• HF MultiTag

• On-board 9V regulator to power Arduino from solenoid power supply.

• Reset button wired through to Arduino reset pin.

• Blue "Arduino power on" LED.

• Green "12V power on" LED.

• 100nF bypass/smoothing capacitor on supply rails.

• Overlay guide both top and bottom.

• Uses through-hole parts for easy assembly.

Open Source: Yes, OSHW-compliant
License: TAPR Open Hardware License
Source: github.com/freetronics/RFIDLockShield

Note:
D4: RX from RFID module.
D5: TX to RFID module.
D6: Output to strike plate.
D7: Output to status LEDs.
