Futura Elettronica GSM Shield

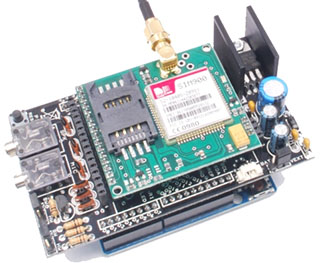

Photo: Open Electronics

Shield URL: GSM Shield
Tags: GSM
Maker: Futura Elettronica

GSM and GPRS shield based on the SIMCom SIM900 module.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Schematic and board layout are provided as images only. No source files provided or license stated.

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Communication is selectable between D4/D5 or D0/D1
