GfxHax DrinkShield

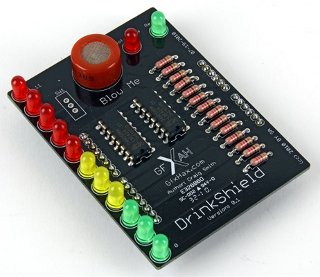

Photo: Craig Smith

Shield URL: DrinkShield
Tags: input, sensor, alchohol
Maker: GfxHax

Open Source breathalyzer kit. Makes it easy to write apps and has a sample game as example code.

Open Source: Yes, OSHW-compliant
License: CC BY 3.0
Source: drinkshield.googlecode.com/svn/trunk/

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
D9 goes to an unused breakout that can be used for a switch or other purposes.
