ITead Studio SD Card Shield

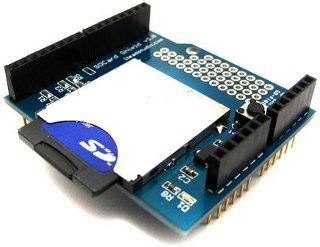

Photo: ITead Studio

Shield URL: SD Card Shield
Tags: sd, memory, storage
Maker: ITead Studio

Connects a standard SD card or TF card to Arduino.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Also includes another reset button (on reset and gnd pin)
