John Liu Phi-Connect Shield

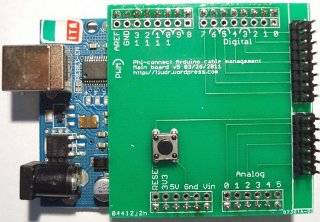

Photo: John Liu

Shield URL: Phi-Connect Shield
Tags: breakout, converter
Maker: John Liu

Phi-connect is a wire/cable management system for Arduino. It passes all Arduino connections to a breadboard with one cable. You can connect your Arduino to a project with just one step.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
No pin is used by the phi-connect shield. All Arduino pins are passed from Arduino to breadboard breakout board. With stacking female headers and right-angle double row male headers, any shield can stack above the phi-connect.
