Libelium GPS Shield

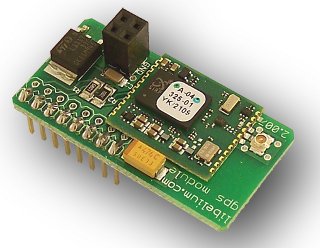

Photo: Libelium

Shield URL: GPS Shield
Tags: gps
Maker: Libelium

The GPS Shield allows your Arduino to get position and altitude, as well as speed, date and time on UTC (Universal Time Coordinated). Internal GPS antenna is optional.

The module is a Vincotech A1080-B that uses the standard NMEA and SIRF III protocols (www.nmea.org) to transmit the position data via serial port.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
