LinkSprite Mamba Shield


Photo credits: unknown

Shield URL: Mamba Shield
Tags: communication, power
Maker: LinkSprite

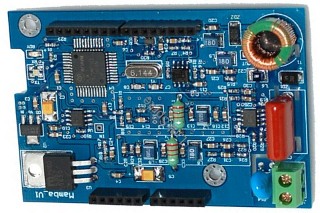

The Narrowband Powerline Communication Shield can be controlled by an Arduino using SPI. You can build your own powerline communication application using this shield.

The board is designed to work with 110/240V, 50/60Hz.

A 1A wall adaptor is needed.

Warning: High voltage present if you connect to main power.

Open Source: Unknown
License: Unknown
Source: Unknown
