Liquidware Double-Wide Extender Shield

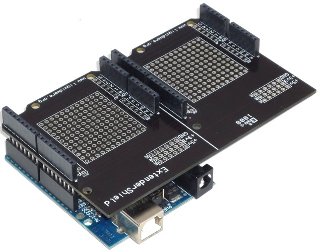

Photo: Liquidware

Shield URL: Double-Wide Extender Shield
Tags:
Maker: Liquidware

Plug in an Arduino to the underside and it replicates all of the pins in two locations so you can istall multiple shields side-by-side. The pin replicators keep everything connected.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
No pins used by the shield itself. All pins are connected through for other shields to use.
