MightyOhm AVR HV Rescue Shield 2

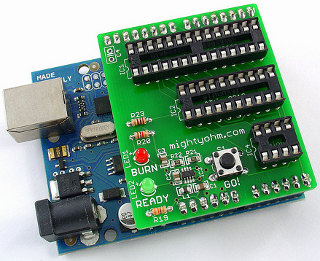

Photo: MightyOhm

Shield URL: AVR HV Rescue Shield 2
Tags: programmer
Maker: MightyOhm

The HV Rescue Shield 2 is a high voltage parallel mode fuse programmer for Atmel AVR microcontrollers.

It currently supports a wide variety of AVR chips, including the 28-pin ATmega48/88/168/328 series, the 20-pin ATtiny2313, and many 8-pin ATtiny devices (such as the ATtiny25/45/85 and ATtiny13A). A list of supported devices is in progress.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: mightyohm.com/blog/products/hv-rescue...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
