Pololu Wixel Shield

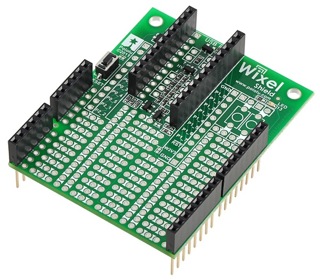

Photo: Pololu

Shield URL: Wixel Shield
Tags: wireless, rf
Maker: Pololu

The Wixel shield transparently enables a wireless link with a typical range of ~15 meters to duplicate the functionality of the Arduino USB interface, which means you can use the standard Arduino IDE and other serial software to:

* wirelessly program the Arduino.
* wirelessly debug sketches with the Arduino serial monitor.
* wirelessly communicate with the Arduino from your computer's virtual COM port.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown
License Note: Schematic provided as PDF. No source files available.

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
