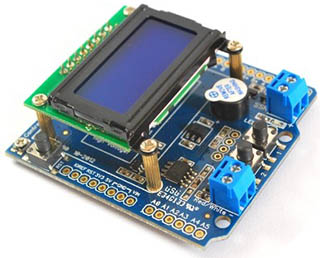

Rocket Scream Reflow Oven Controller Shield


Photo credits: unknown

Shield URL: Reflow Oven Controller Shield
Tags: pid, thermocouple, lcd
Maker: Rocket Scream

Controls soldering reflow ovens or other temperature-controlled systems using a PID loop.

Provides an accurate thermocouple sensor interface using a MAX31855KASA+ for real time temperature acquisition. Controls an external Solid State Relay (SSR) (rated accordingly to your oven) and interfaces with an external K-type thermocouple.

Compatible with the PID library for Arduino.

Features:

  • 8x2 LCD with white characters and blue back light.
  • Two push buttons (breakout pins available for panel mount) connected to a single analog pin.
  • Red LED (breakout pins available for panel mount).
  • Screw terminals for thermocouple.
  • Screw terminals for SSR to control heating element/oven.
  • Buzzer with transistor for loud sound output.
  • Reset button.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: https://github.com/rocketscream/Reflo...

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
A0: Buttons
A1-3: Thermocouple

D4: Indicator LED
D5: SSR / heating control
D6: Buzzer
D7-12: LCD
