Rugged Circuits Aussie Shield

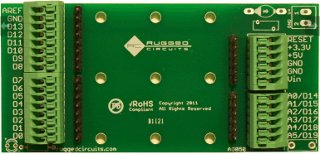

Photo: Rugged Circuits

Shield URL: Aussie Shield
Tags:
Maker: Rugged Circuits

The Aussie Shield is the shield that sits "down under". It is compatible with the Arduino Uno, Duemilanove, and Mega boards (and other compatible boards). The shield extends the connection pins out to 28 quick-connect terminals that accept 20AWG to 24AWG wire. Unlike screw terminals, these quick-connect terminals require no tools: just push, insert wire, and release. Use the Aussie Shield for easy breadboarding, swapping Arduinos in fixed lab or art installations, using stacking shields standalone without an Arduino, or cross-wiring shield pins.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
All pins broken out to quick-connect terminals.
