Samurai Circuits Mama Shield

Shield URL: Mama Shield
Tags:
Maker: Samurai Circuits

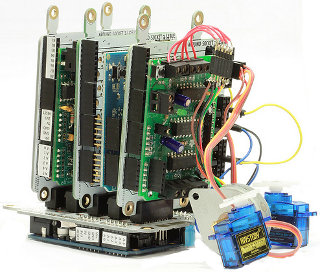

The Mama Shield was designed for high-speed prototyping, and has 5 slots for inserting daughter-boards. Each slot has a 36 pins. The slots contains all of the Arduino pins plus 8 shared bus pins. The bus pins allow cards to communicate between each other.

The shield also has a switchboard so you can easily reconfigure the pin mapping. The switchboard can be used much like an old-style switchboard was used by a telephone operator to connect a call. There are also a row of jumper pins with the jumpers in case you want to keep everything the same.

Open Source: Unknown
License: Unknown
Source: Unknown

Note:
Switchboard pins:
A0-A5
D2-D13

Cuttable solder jumpers pins:
D0, D1
RESET
3V3
AREF
VIN

Non-configurable pins:
5V
GND
