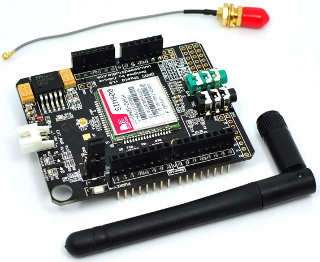

Seeed Studio GPRS Shield

Shield URL: GPRS Shield
Tags: gprs, communications
Maker: Seeed Studio

The GPRS (General Packet Radio Service) Shield provides GSM/GPRS 850/900/1800/1900MHz communications for voice, SMS, data, and fax. It is controlled via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands). The GPRS Shield has 12 GPIOs 2 PWMs and 1 ADC(They are all 2V8 logic).

Features:

• Quad-Band 850/ 900/ 1800/ 1900 MHz

• GPRS multi-slot class 10/8

• GPRS mobile station class B

• Compliant to GSM phase 2/2+

• Class 4 (2 W @850/ 900 MHz)

• Class 1 (1 W @ 1800/1900MHz)

• Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)

• Supply voltage range : 3.1 ... 4.8V

• Low power consumption: 1.5mA(sleep mode)

• Operation temperature: -40C to +85C

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: www.seeedstudio.com/wiki/index.php?ti...
