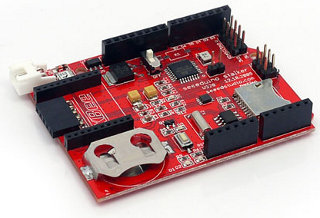

Seeed Studio Stalker


Photo: Seeed Studio

Shield URL: Stalker
Tags: gps, xbee, sensor, communications, rtc
Maker: Seeed Studio

Wireless sensor network node with data logging.

  • Native RTC, On board CR2032 battery holder.
  • GPS.
  • XBee wireless networking.
  • Native micro SD card socket.
  • Stackable I2C pin header.
  • Dual voltage (5V/3.3V) I2C hub.
  • User defined button and LED.


Unusually, this shield can be used either as a regular shield to another Arduino, or standalone using an onboard ATmega MCU.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
In shield mode A4 and A5 are used for I2C communications with the host Arduino.
