Snootlab Power ScrewShield

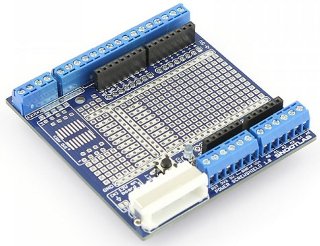

Photo: Snootlab

Shield URL: Power ScrewShield
Tags: prototyping
Maker: Snootlab

A prototyping screw shield for Arduino with 12V on board through ATX Power supply connector and an SMD solder zone.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
All pins are free and available for user on top of the shield. Arduino LED and reset switch are on top of the board.
