Snootlab Rotoshield

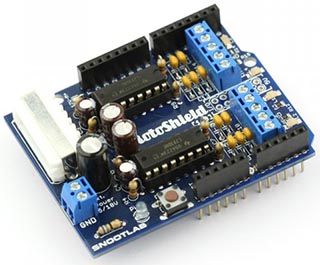

Photo: Snootlab

Shield URL: Rotoshield
Tags: motor, h-bridge
Maker: Snootlab

Dual L293 H-bridge motor driver.

Open Source: Yes, OSHW-compliant
License: CC BY-SA 3.0
Source: http://shop.snootlab.com/attachment.p...


				AREF
				GND
				D13 / SCK
				D12 / MISO
RESET				D11 / MOSI ~
3.3V				D10 / SS ~
5V				D9 ~
GND				D8
GND
VIN				D7
				D6 ~
A0				D5 ~
A1				D4
A2				D3 ~
A3				D2
A4				D1 / TX
A5				D0 / RX
