Sparkfun ScrewShield v1.5

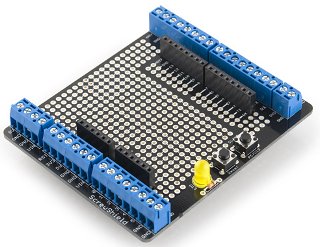

Photo: Sparkfun Electronics

Shield URL: ScrewShield v1.5
Tags: prototyping, terminal
Maker: Sparkfun

The ScrewShield extends all pins of the Arduino out to 3.5mm pitch screw terminals. It also has a lot of the utility provided by a regular prototyping shield, including:

  • A large prototyping space of both connected and unconnected 0.1" spaced through-holes.
  • 5V and GND busses.
  • Reset button.
  • General purpose push button.
  • 5mm yellow LED.

Open Source: Unknown
License: Unknown
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
