Synthetos GRBL Shield


Photo credits: unknown

Shield URL: GRBL Shield
Tags: motor, control
Maker: Synthetos

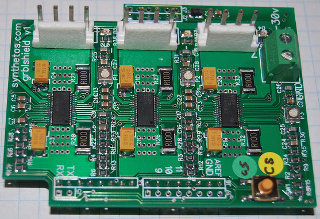

The grblShield is a complete hardware solution for Dank's CNC motion control system called grbl.

  • Plug and play compatible with grbl 0.6
  • Three stepper motors supporting X, Y and Z axes
  • 8x microstepping
  • 2.5 amps per winding (bipolar steppers)
  • 12v-30v motor voltage supported

Open Source: Unknown
License: Unknown
Source: github.com/synthetos/grblShield/tree/...

 I do not yet have verified pin usage data for this shield.
