Unified Microsystems ATS-1 Terminal Shield

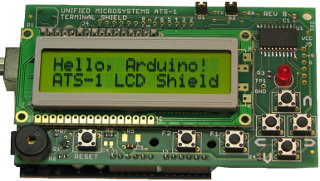

Photo: Unified Microsystems

Shield URL: ATS-1 Terminal Shield
Tags: lcd, display
Maker: Unified Microsystems

The ATS-1 Terminal Shield is a user interface module. Since it uses serial communications to the Arduino, it only uses the D0 and D1 I/O lines leaving the others for the application. Any other two I/O lines can be used if the program uses a software serial driver.

Other Features:

  • 16X2 LCD Display
  • 6 Navigation Switches
  • LED
  • Buzzer
  • Master Reset Switch

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown

AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
Defaults to D0 & D1. Can be wire jumpered to any other 2 digital I/O pins if the program uses a software serial driver (available from Arduino site).
