Wicked Device Nano Prototyping Shield

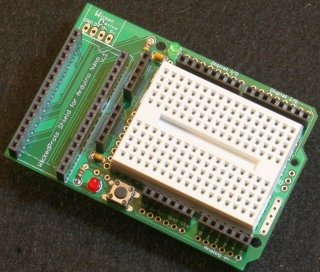

Photo: Wicked Device

Shield URL: Nano Prototyping Shield
Tags: prototyping, converter
Maker: Wicked Device

Adds prototyping space and the ability to connect regular shields to the Arduino Nano.

Open Source: Unknown
License: Unknown
Source: Unknown
AREF
GND
D13 / SCK
D12 / MISO
RESET D11 / MOSI ~
3.3V D10 / SS ~
5V D9 ~
GND D8
GND
VIN D7
D6 ~
A0D5 ~
A1D4
A2D3 ~
A3D2
A4D1 / TX
A5D0 / RX
Note:
No I/O pins are used by the shield directly: all are available for user projects.
