Wicked Device Receiver Shield

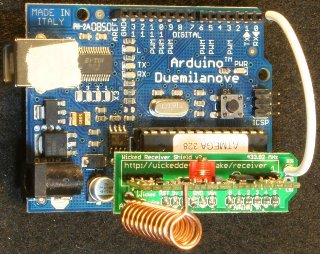

Photo: Wicked Device

Shield URL: Receiver Shield
Tags: receiver, communications
Maker: Wicked Device

Operates at 433MHz.

Not a full shield format, but designed to plug into some of the Arduino headers. Provided as a kit including the board, radio receiver, antenna, wire, and headers.

Open Source: No, not OSHW-compliant
License: Proprietary / closed source
Source: Unknown

 I do not yet have verified pin usage data for this shield.
